Well Testing Solution
Senoil designs, fabricates, and delivers onshore & offshore well testing package during the last 5 years. Well Testing equipments are used in Oman, Pakistan, Australia, Nigeria and other countries.
Well testing service purpose is to find out gas and oil volume from a well per day. The well can be a new one, also can be an old one after frac job.
From process procedure, well testing equipments include flowhead, SSV, sand filter, ESD, chemical injection pump, choke manifold, indirect heater, three phase separator, surge tank, crude oil transfer pump, burner, gas flare and DAS system. Upstream equipment like flowhead, SSV, choke manifold is made according to API 6A. Process equipments like three phase separator and surge tank is made according to ASME VIII.
 |
 |
 |
| surface test tree | data header | choke manifold |
 |
 |
 |
| surface safety valve | dual pot sand filter | heat exchanger |
 |
 |
 |

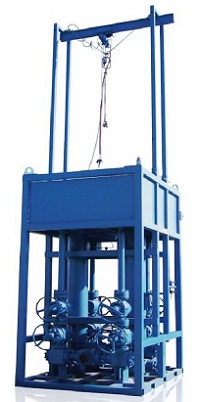

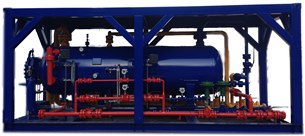

| gauge tank | esd control panel | three phase saparator |
 |
 |
 |
| oil manifold | gas manifold | surge tank |
Referred Standards
- API 6A
- API 16C
- API 14R
- API 12J
- ASME VIII
- NACE MR0175
- DNV 2.7.3
