Swivel Joint

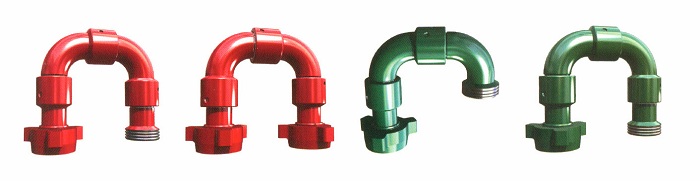

Swivel Joint (interchangable with FMC Chiksan swivel joint) is a metal pipe adapter installed with roller bearing. There are long radius swivel joints and short radius swivel joints with size from 1" to 3" and working pressure range from 2,000psi - 20,000psi
Applications
- frac pipeline
- well testing pipeline
- high-pressure well service flowlines
- Other well service, stimulation and abrasive applications
Features
- Working Pressure: from 2,000psi to 20,000psi
- Nominal Pipe Size: 1", 2" ,3", 4"
- End Connection: FIG 206, Fig 602, Fig 1002, Fig 1502, Fig 2202
- Sour gas service are available
- Style 20, 30, 40, 50, 60, 70, 80, 10, 100 are available.
