Oil and gas manifold
Oil and gas manifold is to divert the flow of oil and gas from separator or surge tank to other burner or gas flare or to other flowline.
Oil manifold connects to separator oil line and lead oil or gas to surge tank or gauge tank, transfer pump, and the burner. It allows oil leaving the separator or surge tank to be diverted to tank, burners, and production line. Typically, it consisits an arrangement of piping, five ball valves, crossover with hammer union and skid assembly, but flexible configuration of valves and ports.

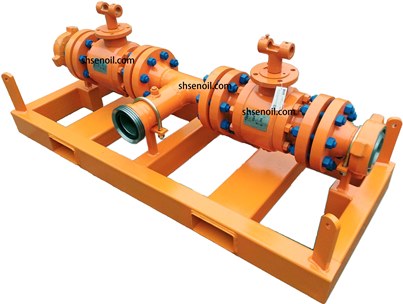

Gas from the separator flows through the gas manifold which connected to the separator gas line and is directed to one of two gas flares Gas manifold is equipped with 2 ball valves.
Ball valve we used is Balon brand, China brand or customerized brand. Two pieces and three pieces ball valve are optional.
