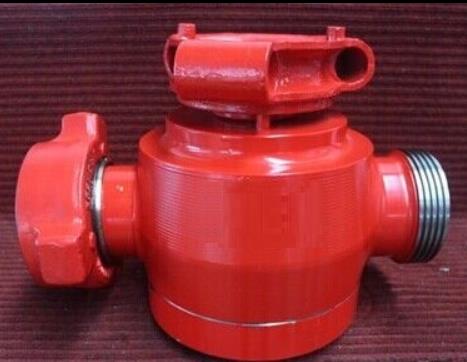

Plug Valve
Plug Valve is also called low torque valve, which seat seal type is line seal. Similar to ball valve, there is reduced bore of plug valve.
Senoil plug valve is interchangable with FMC ULT type or SPM EXL type. For 1", 1"X2", 1-1/2" and 2" plug valve, plug is top entry. and for 3" and 4" plug valve, plug is bottom entry. but for Halliburton plug valve, all are bottom entry.
Our plug valves are tough, field proven that provide dependable service for applications such as cementing, fracturing, acidizing, well kill, coil tubing and sand control.

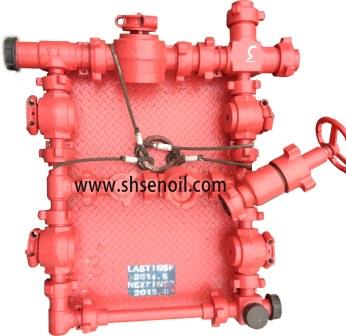

Plug valve manifold is used to control flow direction, which is composed of plug valves, choke tee, treating iron and fittings.
Applications
- frac pipeline
- well testing pipeline
- high-pressure well service flowlines
- Other well service, stimulation and abrasive applications
Features
- Working Pressure: from 2,000psi to 15,000psi
- Nominal Pipe Size: 1", 1-1/2", 2" , 3"
- End Connection: threaded, FIG 1002, Fig 1502
- Sour gas service is available
- FMC type to 3" bore size available
- SPM type to 3" bore size available
- Halliburton type to 2" bore size available
- MSI type to 3" bore size available
