Equipment Passport or ПАСПОРТ

Recently we are very busy for our Russian project. And we nearly forget our blog.

Maybe you can found that our title have two languages. so below information is refers to our new project.

Our project will be finished. and for Russian clearance, equipment passport is need. This passport is not for a person who travel all the world. It is for Russian clearance. Below is one passport format for Crossover. Hope it will help many friends who will do business with Russian customer.

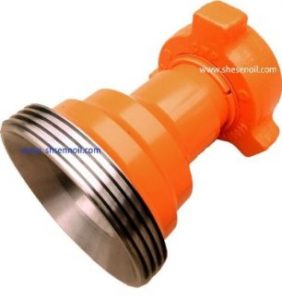

Crossover

Type: CO6″206×3″602

Passport

Serial NO.: XXXXXXX

Table of content

1. Instruction
2. Basic information for product
3. Technical Parameter
4. Certificate of Acceptance

1.Instruction

1.1 This Passport to the Crossover serial number xxxxx contains technical specifications, a brief description of the structure, and information on maintenance. Before the start of operation, persons using crossover should read the contents of this Passport and the operating manual.

1.2 Detailed information on the product design, operation rules, and maintenance is indicated in the operating manual that is attached to this equipment.

2. Basic information for product

2.1 Manufacturer

Senoil

2.2 Purpose of Crossover

Crossover is one small pipe with different end connection to quickly connect different pipe.

2.3 The working theory of crossover

Crossover is designed according to API standard and customer’s request. Pressure class decides the wall thickness. And media decide Corrosion allowance. End connection is made according to user’s request

2.4 Features and benefits

Easy to install and operate

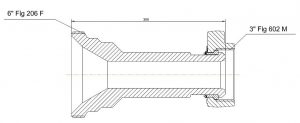

2.5 Configuration

3. Technical Parameter

Type :                                             CO6″206×3″602

Nominal Diameter:                   69.85mm

End Connection:                        6″Fig. 206 x 3″ fig. 602

Pressure Class:                           2,000 psi

Working Pressure:                    1,440 psi

Total length:                               300 mm

4. Certificate of Acceptance

Crossover type: CO6″206×3″602

Serial NO.: xxxxxx

Date of manufacture “22” April 2018

The factory acceptance tests were carried out in accordance with standard, the test results were entered in the register of products.

Date of acceptance on “24” April, 2018

The Crossover number xxxxxxx is recognized as suitable for operation and meets the requirements of technical and regulatory documentation.
