safety valve
In our production scope, we will meet with different kinds of safety valve, Safety valve, SCSSV, and SSV. But all safety valves apply same part — spring. We will find their difference by description and photo.
Safety valve, 3” x 4”, 300lb, 90 degree angle type. This kind of safety valve is normally used on pressure vessel to relief gas in case of over pressure, fire or other emergency situation.

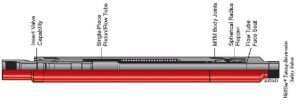

SCSSV, subsurface safety valve, 2-7/8” X 10000PSI, length: 1305mm. which is used in downhole well. Actuate pressure is 10000 psi.
SSV, surface safety valve, 3-1/16” x 10,000psi, hammer union end, EE, PU, PSL3, PR1.
We will conclude the difference in below form:
| Equipment Name | Working pressure | Type | Remote control | Actuate pressure | Action | Standard |
| Safety valve | According to vessel pressure | 90 Angle | NO | N/A | Relief gas | ASME |
| SCSSV | 10,000psi, 15,000psi | Straight | YES | Valve Working pressure | Fail safe | API 14A/B |
| SSV | 5,000psi,10,000psi, 15,000psi | Straight | YES | Actuator trigger pressure | Fail safe | API 6A |
Maybe some friends will feel curious that there is no SCSSV in your website and why you mentioned. Let us explain to you. We have to points may connect with SCSSV. One is ESD control panel. Sometimes, end user need ESD control panel to control 2 SSVs, one is SCSSV, and the other is SSV. The other is related to control line protectors. The control line connected with SCSSV should be protected by control line protectors.
